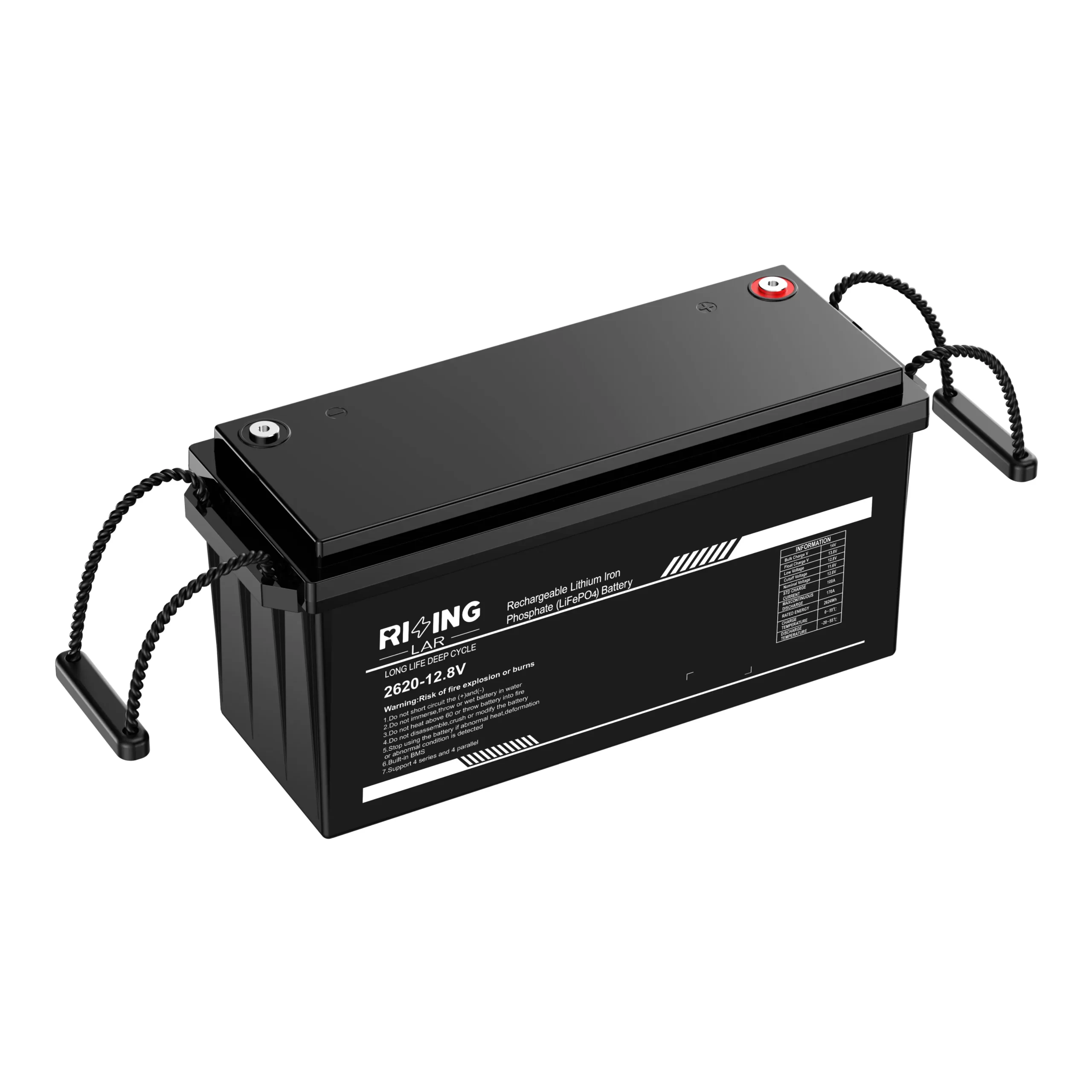

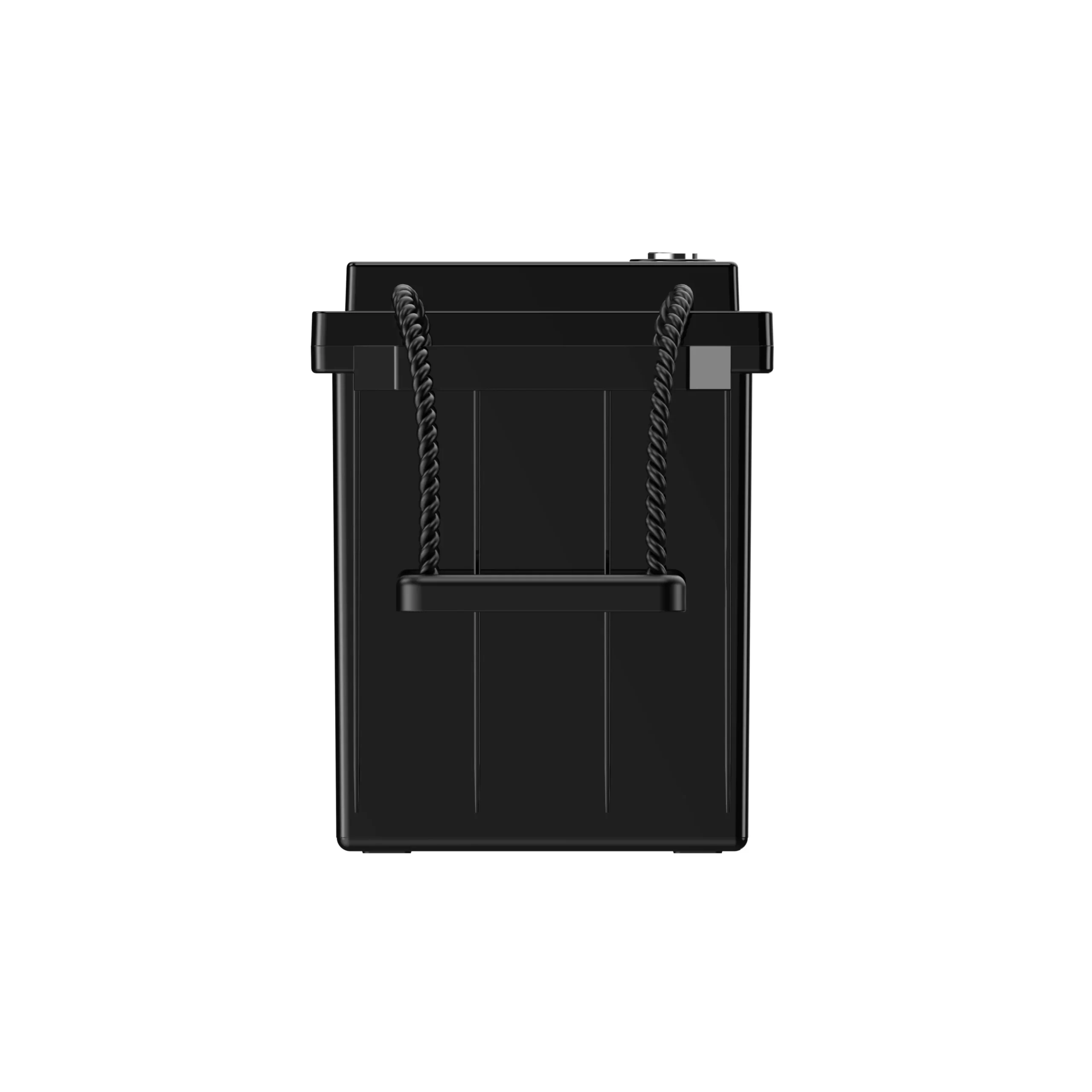

LAR 2620-12.8V

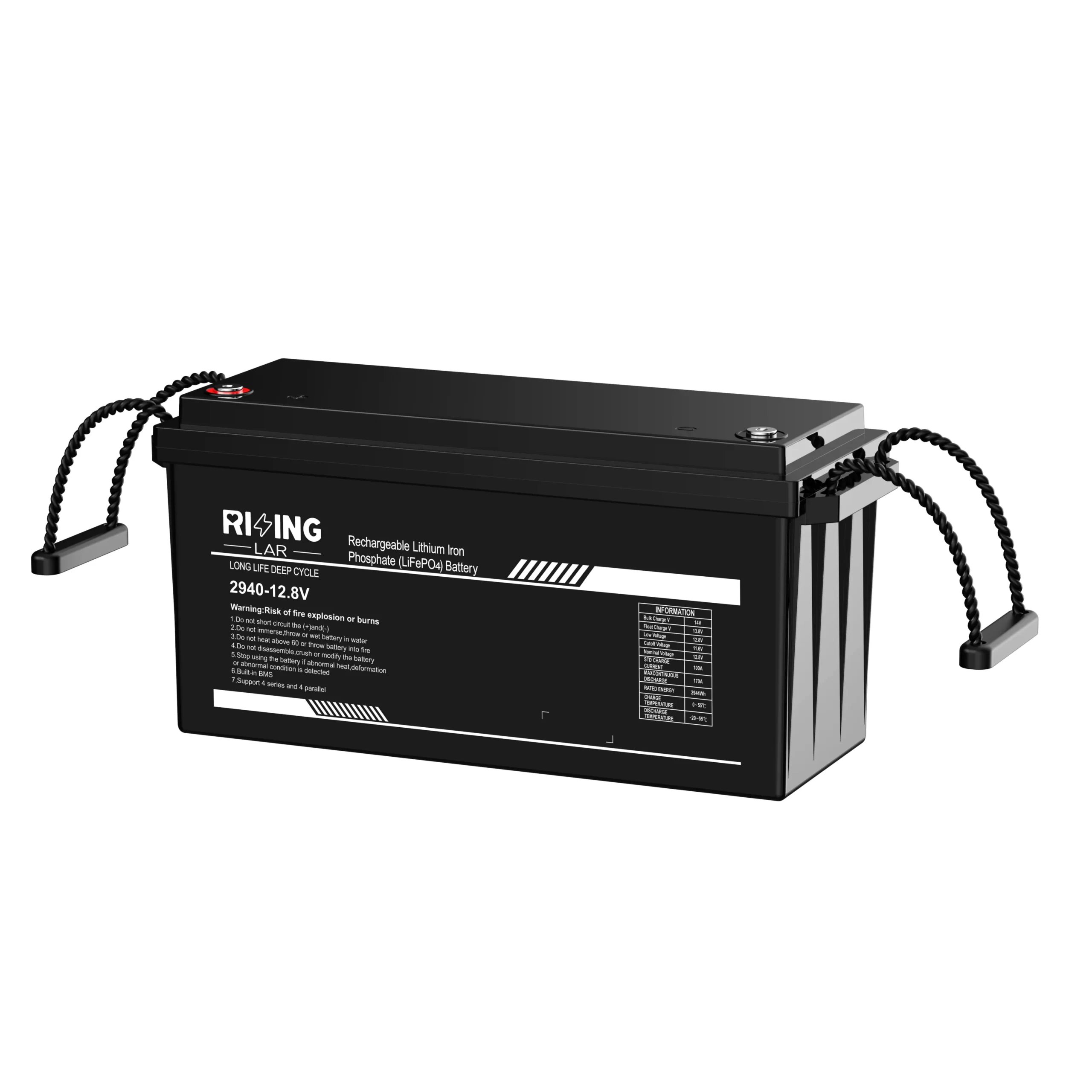

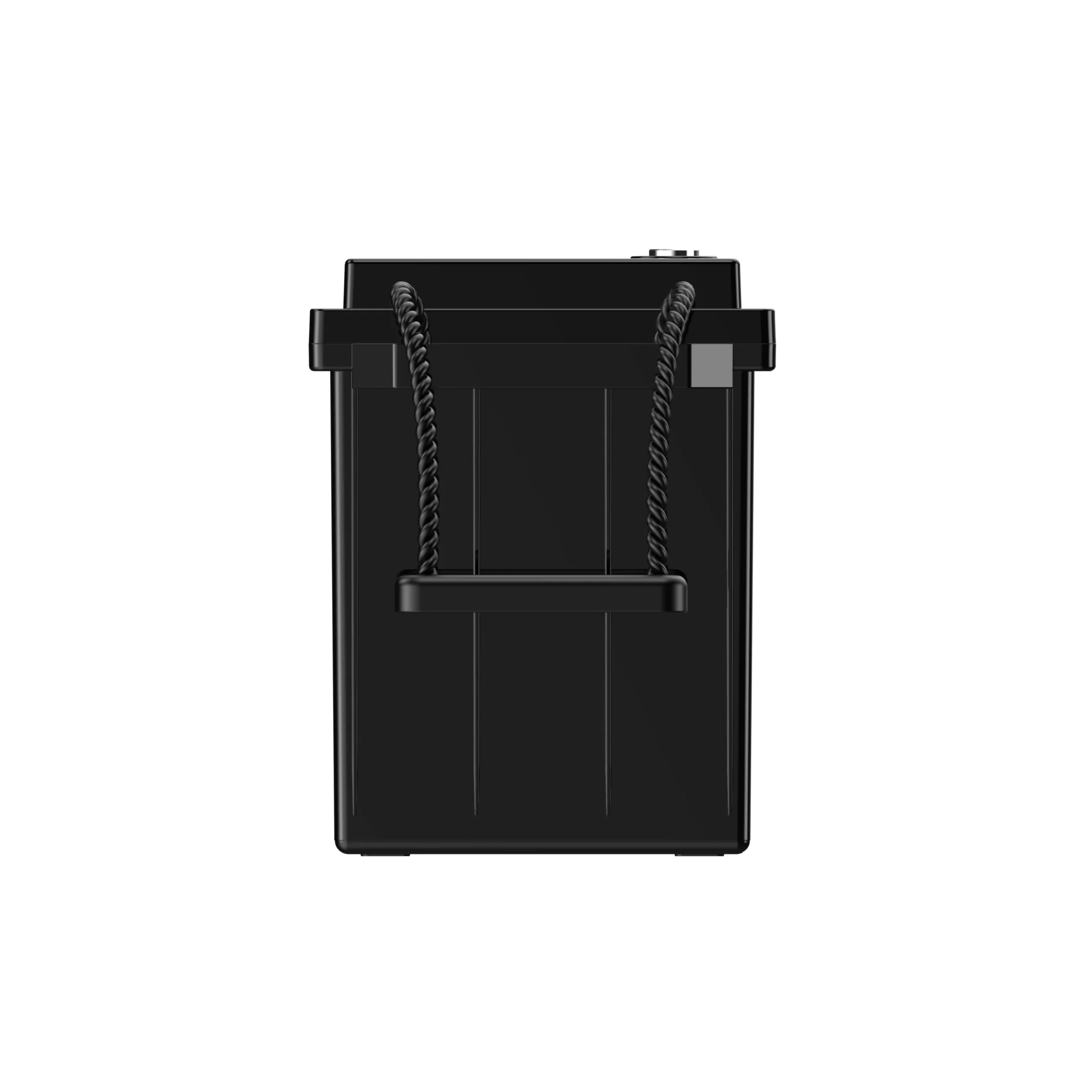

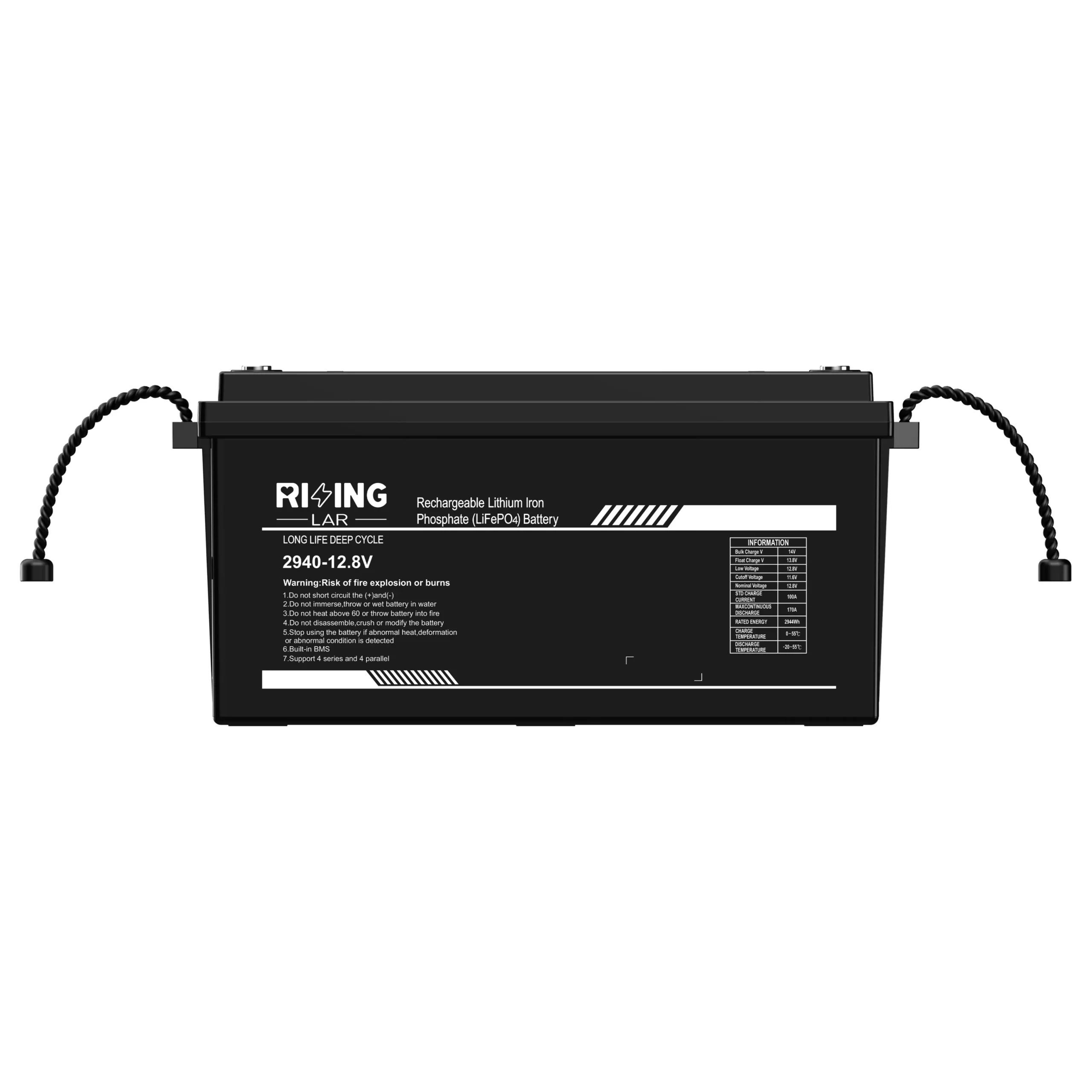

LAR 2940-12.8V
Reliable: Grade A LiFePO4 Cell
Scalable: Scalable from 2.62 to 23.55 kWh
| Model | LAR 2620-12.8V | LAR 2940-12.8V |
|---|---|---|
| Performance | ||
| Nominal Ratings | 12.8 Vdc, 205 Ah, 2.62 kWh | 12.8 Vdc, 230 Ah, 2.94 kWh |
| Bulk Charge V | 14 Vdc | |
| Float Charge V | 13.8 Vdc | |
| Low Voltage | 12.8 Vdc | |
| Cutoff Voltage | 11.6 Vdc | |
| Charge Current | 100 A | |
| Discharge Current | 200 A | |
| Short Circuit Current | ≈1000 A | |
| General Specification | ||
| Dimension (WxDxH) | 502 x 186 x 241 mm | |
| Weight | 19.6 kg | |
| Operating Temperature | Charge: 0∼55 °C / Discharge: -20∼55 °C | |
| Operating Humidity | ≤ 95% RH | |
| Max Operating Altitude | ≤ 2000 m | |
| IP Rating | IP 54 | |
| Cell Technology | LiFePO4, Lithium Iron Phosphate | |
| Cycle Life | 6000 Cycles @ 80% DoD / 25 °C / 0.5C, 60% EOL | |
| Scalability | Max 2 Batteries in Series
Max 4 Batteries in Parallel |
|
| Standard Compliance (more available upon request) | ||
| Certificates | CE, UN38.3 | |
| Ordering and Deliverable Part | ||
| Product Ordering Part | LAR 2620-12.8V Battery | LAR 2940-12.8V Battery |
*Specifications in this datasheet are subject to change without notice.
